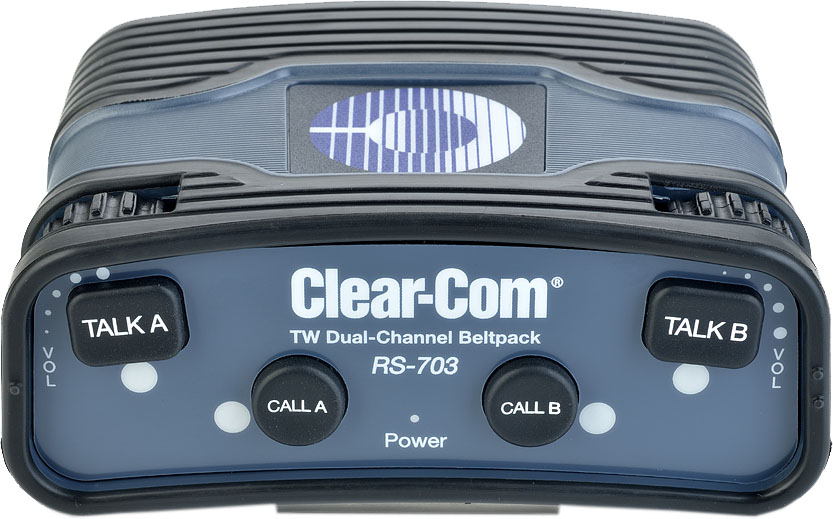

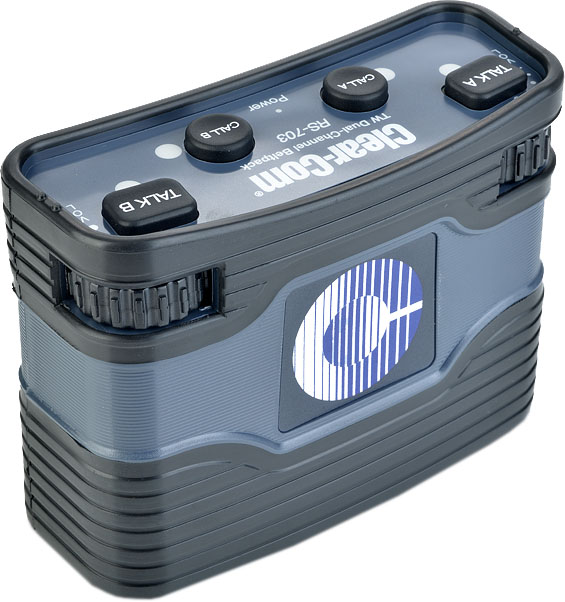

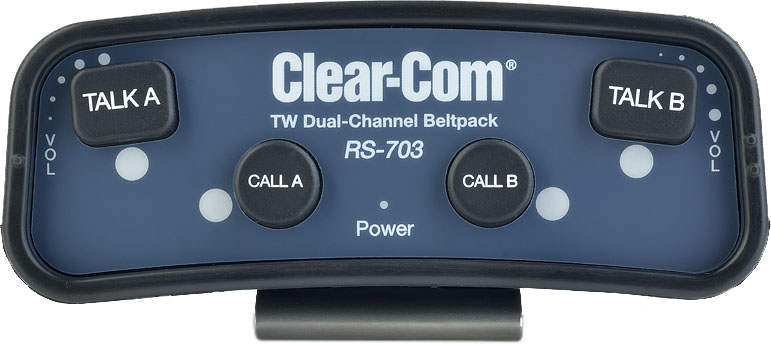

CLEARCOM - RS-703
Boîtier ceinture d'intercom 2 canaux. Équipé XLR3F/XLR3M via TWC-701. XLR4M pour combiné micro/casque
Propriétés techniques

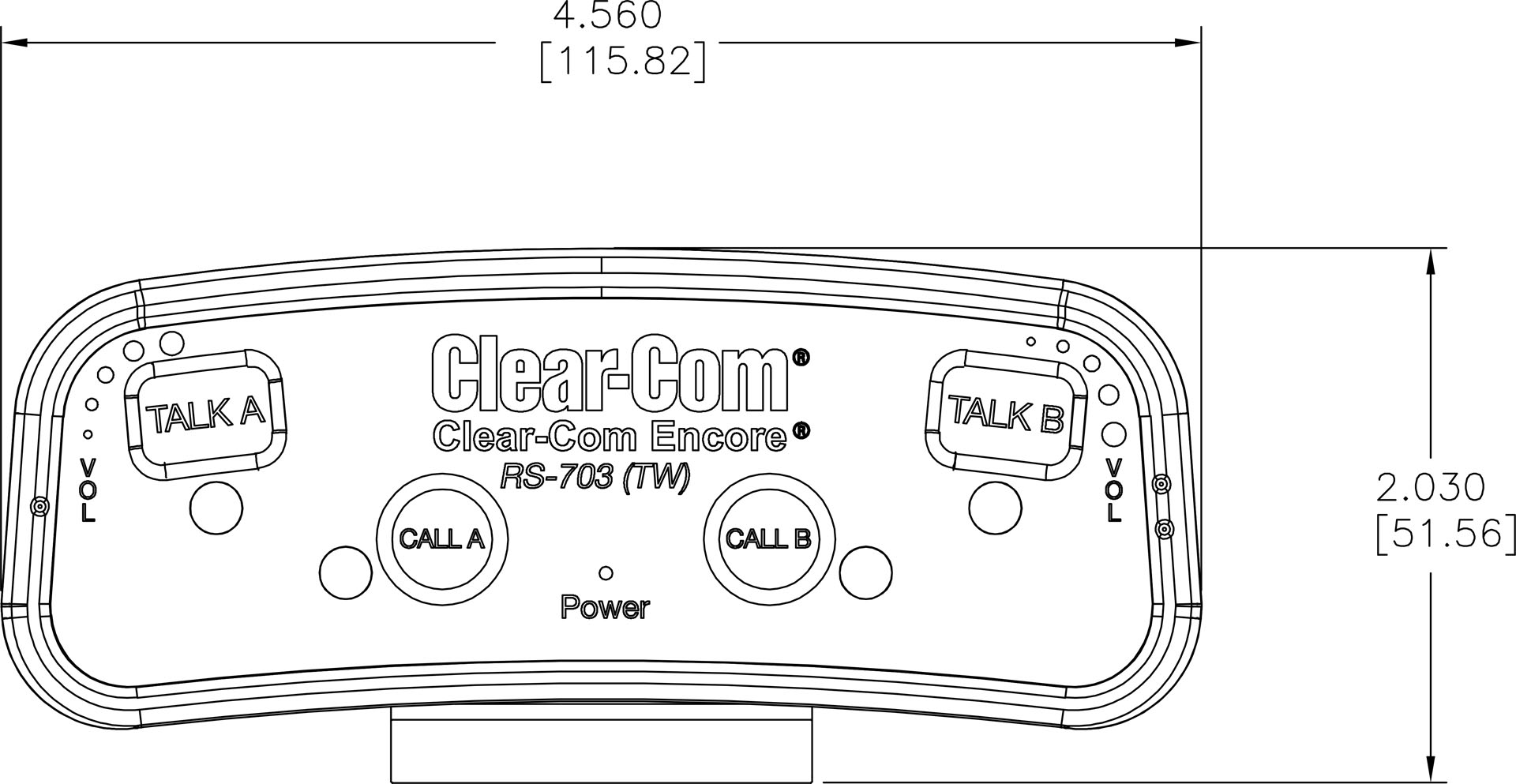

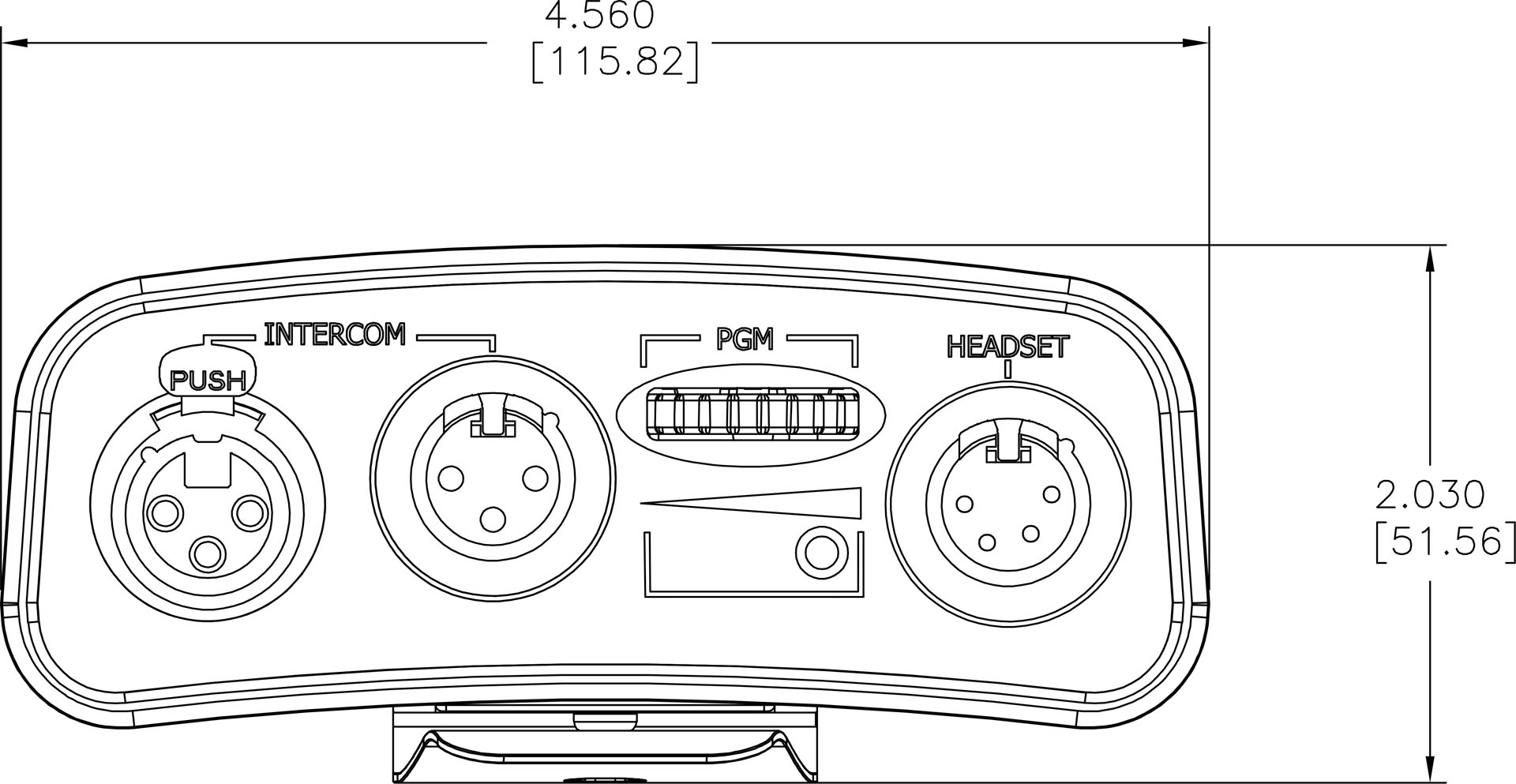

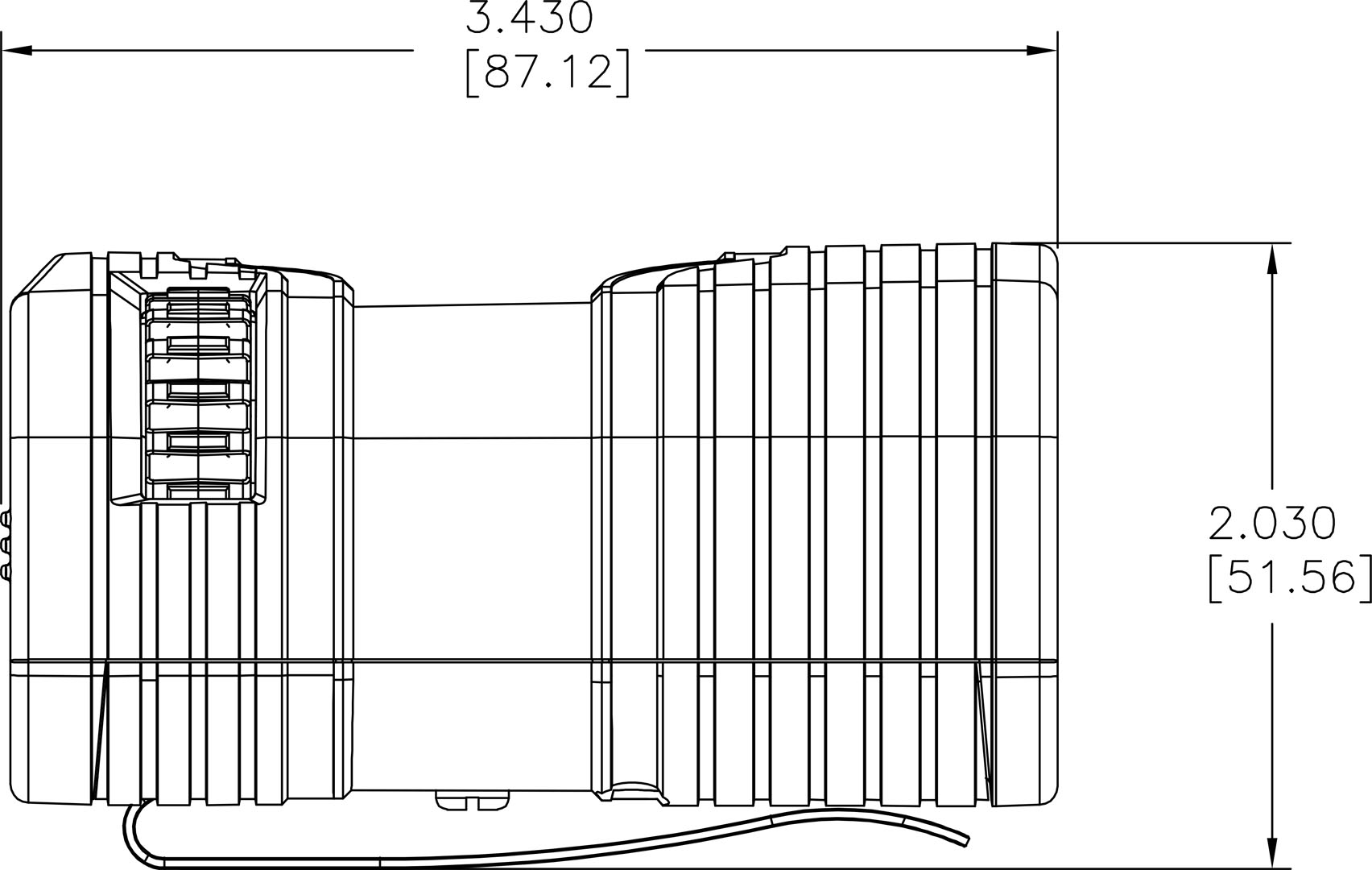

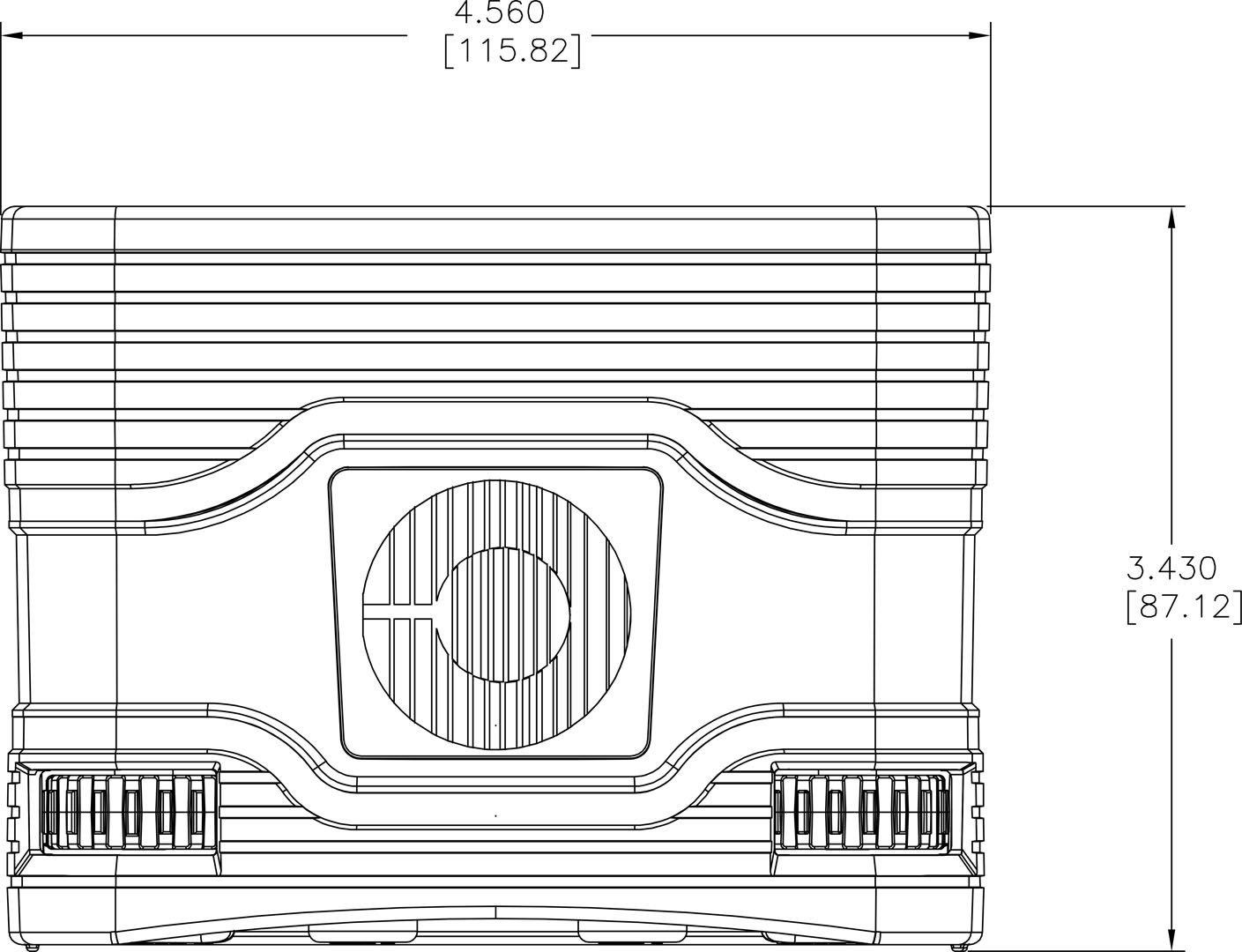

- Dimensions unitaires : 86 x 114 x 43 mm
- Poids unitaire : 0,31 kg
Documents à télécharger
Détails produit
- 2-Channel Beltpack with XLR-3 Connector
- Visual LED indicators on top of keypad
- Tactile buttons for Call and Talk
- Recessed rotary controls for Volume with end stops
- Concealed, programmable DIP switches
- XLR-3 line connectors with 2-channel connectivity
- 3.5mm Program Audio Input jack
- RTS-TW compatible
- Fully compatible with current and previous Clear-Com analog partyline systems
- Low operating current for more beltpack daisy-chaining
- Rugged and strong construction
- “Clear-Com Sound” for intelligible audio
Technical Specifications
dBu is an absolute measurement. 0 dBu is referenced to 0.775 volts RMS
- Microphone Pre-Amplifier
- Mic to Line (without limiter acting)
- Frequency Response: 280 – 15kHz ± 3dB
- Microphone output to line – Audio Level (-50dBm Electret inpu
